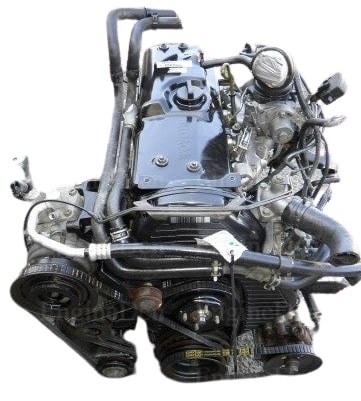

TOYOTA 5L 3.0 DIESEL ENGINE

The Toyota 5L is a 3.0 L (2,986 cc, 182.22 cu·in) four cylinders, four-stroke cycle water-cooled naturally aspirated internal combustion diesel engine, manufactured by the Toyota Motor Corporation.

The Toyota 5L diesel engine has a 99.5 mm (3.92 in) cylinder bore and 96.0 mm (3.78 in) piston stroke. Compression ratio rating is 22.2:1.

The motor has a cast iron cylinder head with a single overhead camshaft (SOHC) with two valves per cylinder and indirect injection.

Category:

Model:

HILUX Closed Off-Road Vehicle (LN_, KZN1_, VZN1_), Hi-Lux, DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_), HIACE V Box (TRH2_, KDH2_), HIACE / COMMUTER V (TRH2_, KDH2_)
Engine:
3.0 D4d, 3.0 D, 3.0 4WD, 3.0 D, -, 3.0 D, 3.0 D, 3.0 D-4D 4WD
Year:
2004-, 1988-1997, 1968-1974, 2001-, 2004-, 1998-2001,2003-2004,2002-2005,2005-
OE NO.:
5L
Car Fitment:
Toyota
Type:
Diesel Engine
Power:
88
Displacement:
3.0L
Torque:
191Nm (19.5kg m;141 ft lb)at 2400rpm
Place of Origin:
Liaoning, China
Brand Name:
MTI
Model Number:
5L
Warranty:
24 Months
Engine Code:
5L MTI 2102101
Car Model:
For Toyota Hiace Hilux pickup
Material:
Cast Iron
Status:
Brand New
Layout:
Straight-4 vertical
